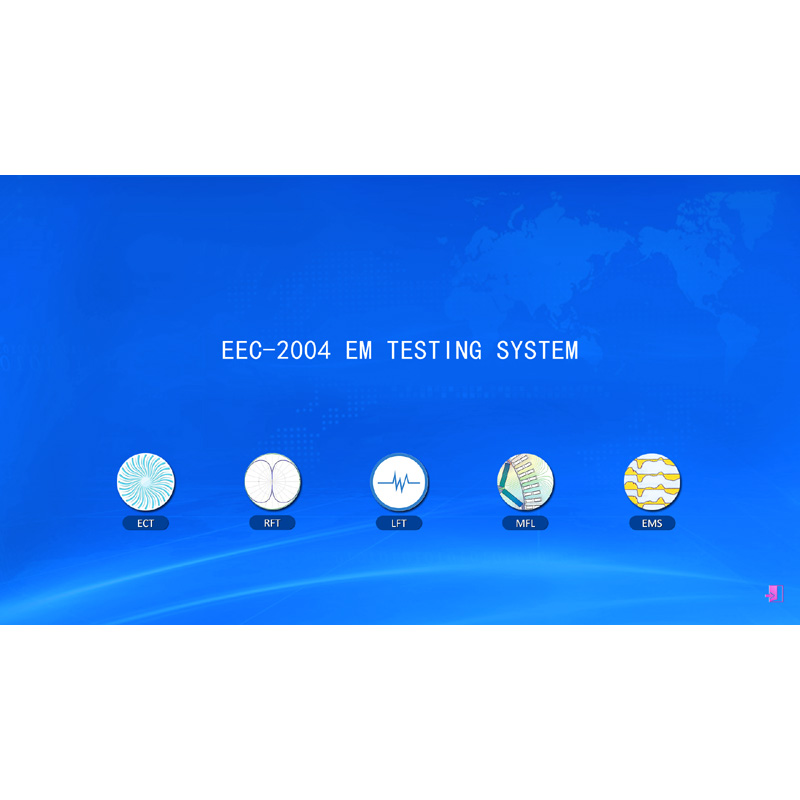

Tube Inspection NDT System EEC-2004S

This intelligent multifunctional electromagnetic tester makes the inspection much easier, faster and more accurate. Eddy current testing (ECT) with endoscope, remote field testing (RFT), low frequency testing (LFT), metal magnetic memory (MMM) and magnetic flux leakage (MFL) are all included in this instrument. The all-in-one design makes the small body with strong function.

Designed with 3 mixing units and tube sheet mapping makes this instrument widely used for inspection of small pipeline, heat exchanger tubes and boiler tubes, for both carbon steel and non-ferrous materials.

Inspection settings for different applications can be stored in files and simply called up when needed. Testing data can be saved and called up for replay.

Advanced Features

•  ECT with endoscope for defect inspection, RFT for in-service carbon steel pipe inspection, LFT for ferrous materials without saturation, MMM for stress concentration evaluation, and MFL for ferrous materials inspection and thickness measurement

•  High-precision defect inspection, like crack, scratch, hole, pit and so on

•  8 impedance planes and real-time strip charts

•  Operation tips and help function can be called to display relevant information

•  Parameters can be stored in advance and easily called out for inspection when needed

•  Connectors for Internet and Encoder

•  Languages available in English and Chinese

Widely Used For

•  Crack detection for aircraft components, axles, machine parts, bolts and so on

•  Surface inspection for welds with or without coating

•  In-service, on-line, off-line inspection of seamless and welded pipes

•  Inspect non-ferrous and ferrous heat exchanger tubes, boiler tubes and small pipelines

•  Sort different heat treatment conditions and different materials

•  Early diagnostic for component fatigue damage by detecting stress concentration
