Tank bottom plate MFL inspection

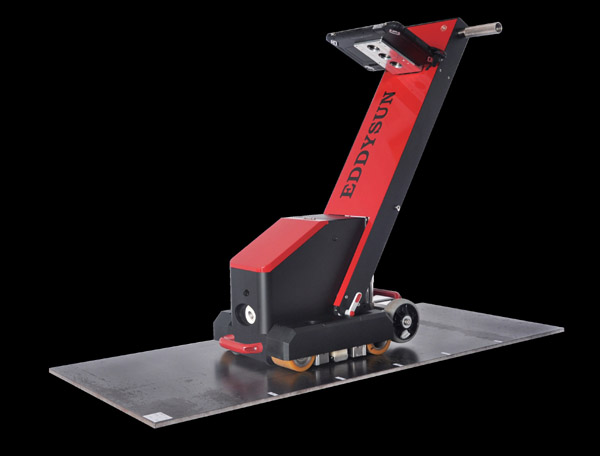

Tank bottom inspection system is designed to check and measure corrosion and thickness decrease of tank bottom plate. The system improves the complete inspection process with industrial touch integrated computer, reliable and stable performance, high sensitivity and high efficiency. The structure is optimized with embedded system module, six-wheeled design and new arm structure.

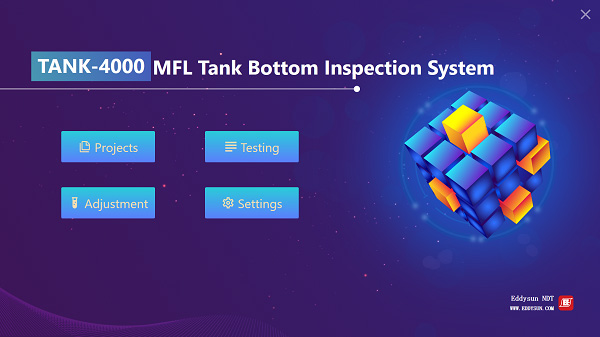

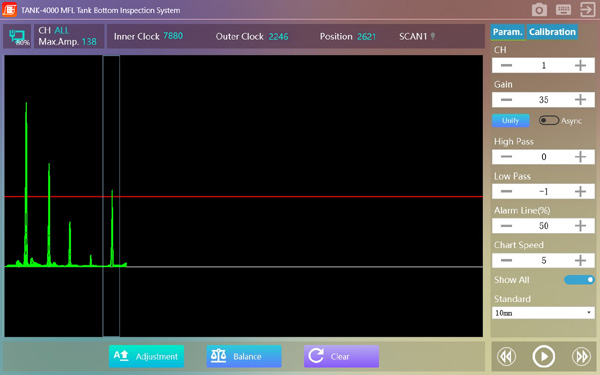

System Interface

Calibration

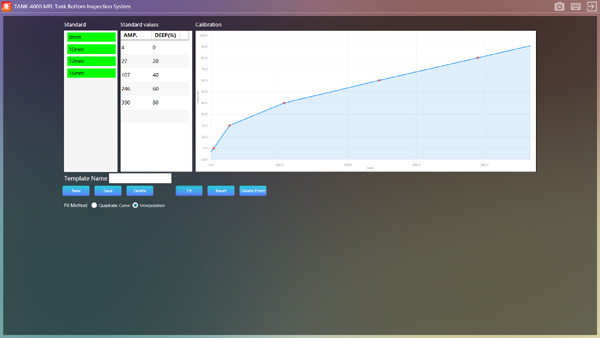

Calibration for different thickness of sample plates can be saved for future use. Calibration can also be made on site.

Top and Bottom Discrimination

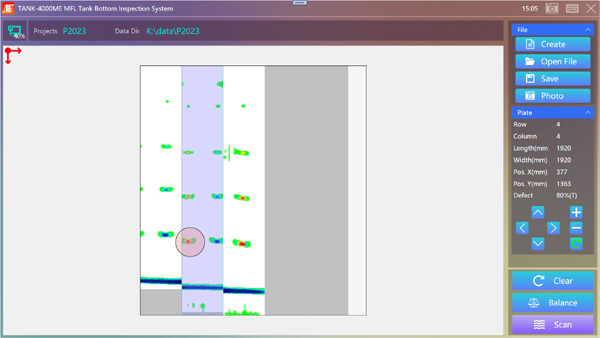

With the first use of MELF technology, Tank-4000SME MFL/ECT/Video tank bottom inspection system enables to discriminate top side and bottom side, to improve the inspection accuracy, and to help engineers to make the best maintenance plan.

Deviation Rectification

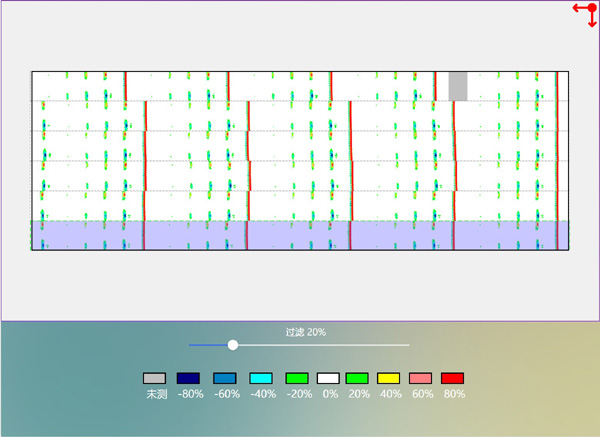

Deviation rectification is used to avoid inspection deviation caused by obstacle on the scanning way. The deviation data is processed and then is automatically filters out by C scan imaging. The obstacle area is marked in grey.

Video Inspection

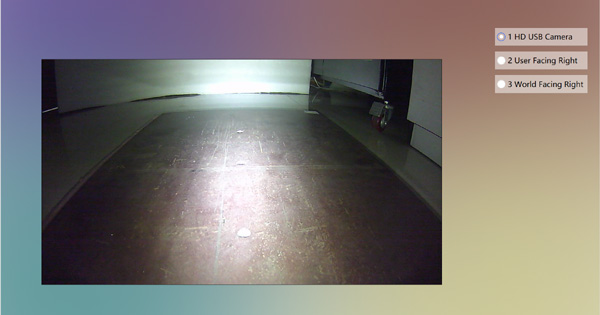

720P Hd video inspection is available to capture the inspection area.

Floormap Drawing

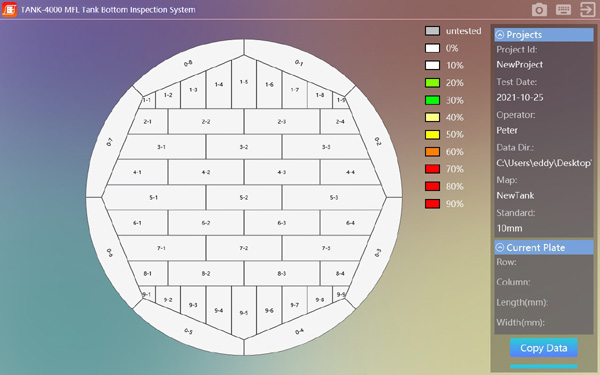

Designed with mapping software, the map of bottom plate can be made before testing, and called out at any time. It can also be made or revised on site.

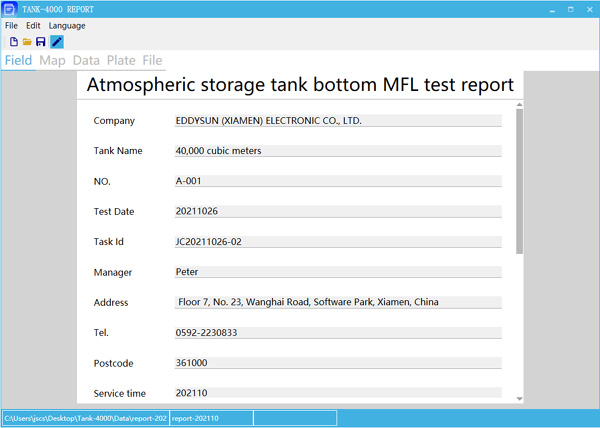

Inspection Report Output

An editable inspection report is automatically created to simplify the post process and to improve efficiency.

The channels and functions of this system is optional accroding to testing demands, please feel free to contact me for further information.

Tank-4000： 32-channel MFL（basis）

Tank-4000ME： MFL+ECA with top and bottom discrimination

Tank-4000SME ： 256-channel high-definition MFL
