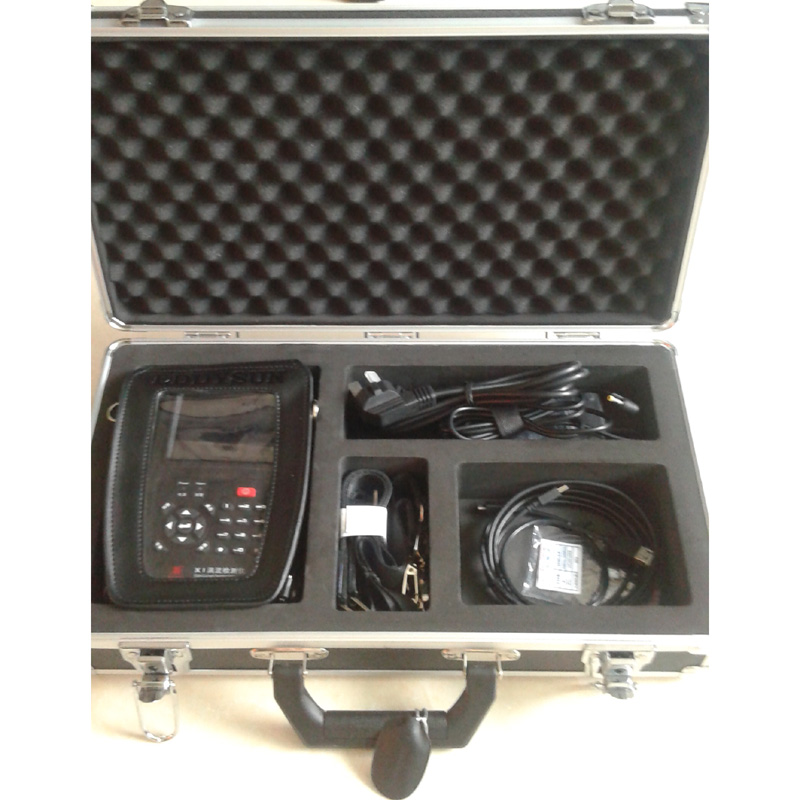

Are you in search of an affordable, no-nonsense, and high quality eddy current flaw detecor? This instrument - Handheld Eddy Current Flaw Detector ON SALES X1 is the best choice!
It has been proved by research that, operate smart keyboards with thumb is much easier than with other fingers because it has less joints. X1 takes this advantage to realize one-finger operation. Moreover, with the latest digital electronic technology and microcomputer technology, this instrument can offer not only extremely convenient operation, but also reliable and stable high performance.
X1 is designed with advantages of impedance display mode and micro power. It can be used for the inspection of various flaws. The instrument case is made from light and wear-resistant material to make it sturdy and durable.
X1 has high sensitivity for discontinuities of metal materials, such as cracks on copper pipe surface, puckers and scars of steel pipe, pits, scratches, wear scars, transverse fissures or separation layers etc.
Besides the man-machine dialog and the special digital electronic balance technology, X1 has a broad frequency range from 64Hz to 5MHz which is appropriate for inspection requrements of various metal materials. Since designed with full digital technology, parameters for various applications can be saved for future use. The selection of probe completely depends on users’ testing requirements.
Features & Specifications
◆ Frequency range: 64 Hz~5 MHz (adjustable)
◆ Gain range: 0~90 dB, adjustable in step of 0.5 dB
◆ Phase rotation: 0~360°, adjustable in step of 1°
◆ Fast digital/analogue electronic balance
◆ Impedance plan display window
◆ Delay disappear of signal track
◆ Menu type man-machine dialog
◆ Communication by USB port (connect with USB and other removable storage devices) or network port (connect with PC)
◆ Digital filter
◆ Optional in absolute probe, differential probe and self-comparing probe
◆ The alarm area is adjustable
◆ Boundary dimension: 183×120×44 (mm)3
◆ Weight: 600g

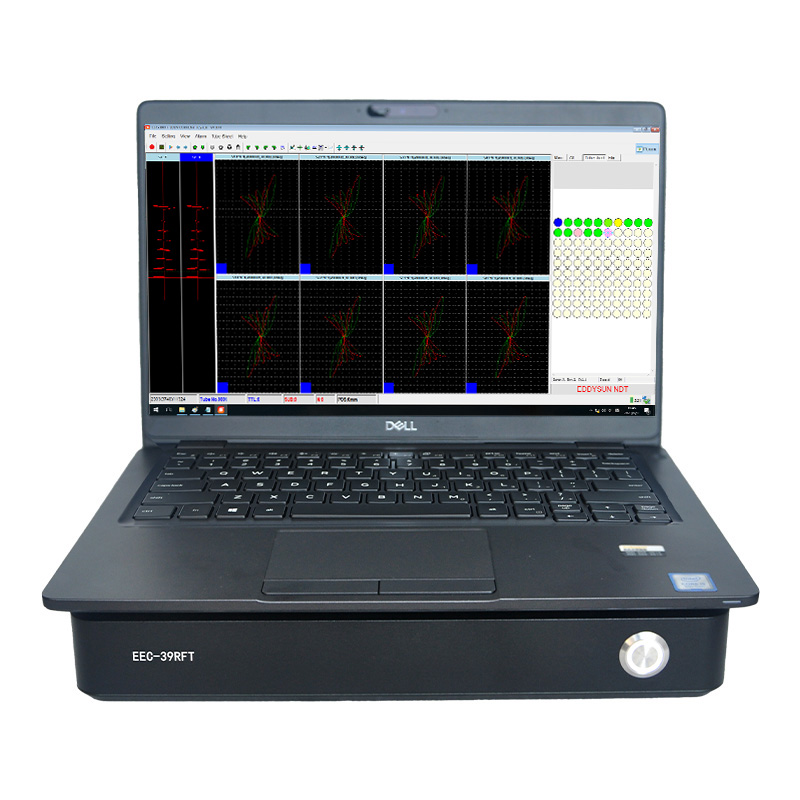

EEC-309 is designed with MIMO and OFDM technology, which greatly improves the testing speed of RFT. It is widely applied for high speed tube inspection, heat exchangers inspection, condensers inspection etc. It also enables to inspect defects and check wall thickness at the same time.
Learn More

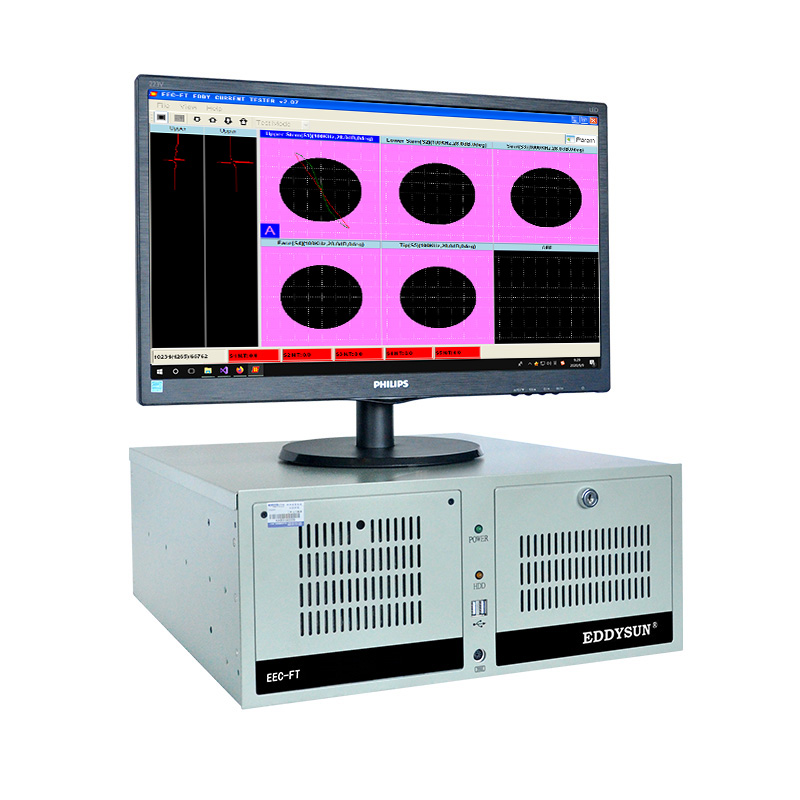

EEC-FT wire inspection ECT is designed with 5 independent testing channels which can test 5 lines at the same time. The start and end of each channel can be controlled individually. The optional powerful report system makes the testing data analysis easily. It is widely used for tungsten wire inspection and molybdenum wire inpsection.
Learn More

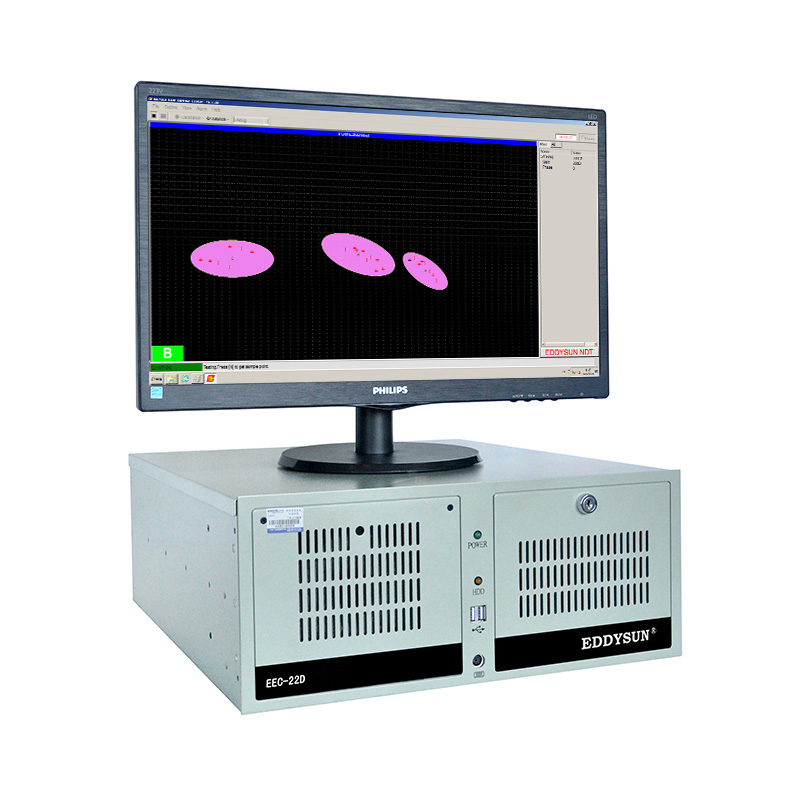

EEC-22D Eddy Current Sorting System is specially used for material sorting, hardness sorting, heat treatment sorting, and flaw inspection of metal tubes, bars, wires, auto parts, valves and various metal components. The difference of structure, case depth can be well separated too.
Learn More
EEC-23 eddy current tester can be used for the on-line/off-line tube inspection, bar inspection, wire testing and so on. Work with different probes and accessories, this machine can realize different functions. For example, with saturation device, it can be used for the inspection of ferromagnetic materials; with special probes of welding, it can be used to test welding quality on line or by hand.
Learn More
Heat exchanger tube inspecton system with ECT and RFT functions for both ferrous and non-ferrous tubes. Mixing function enables noise signal remove from the support plate, and tube sheet mapping enables to draw the tube layout and to mark the testing result with different colors.
Learn More

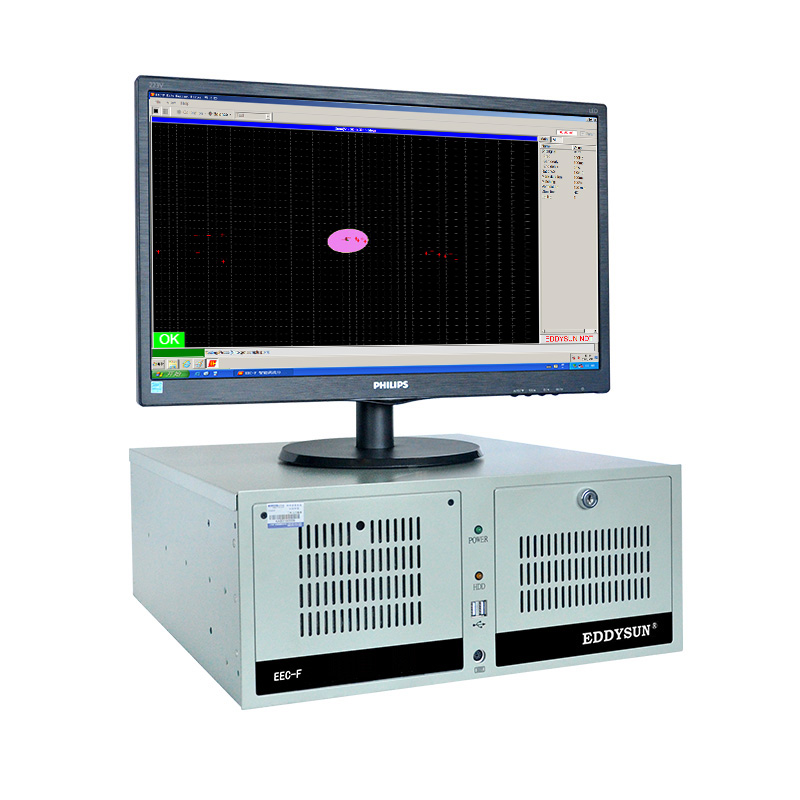

EEC-F ECT sorting system is provided for hardness sorting, material sorting, and heat treatment sorting. It can be used for inspection and sorting of metal tubes, bars, wires, auto parts, valves and various metal components. The difference of structure, surface hardness, case depth can be well separated too.
Learn More

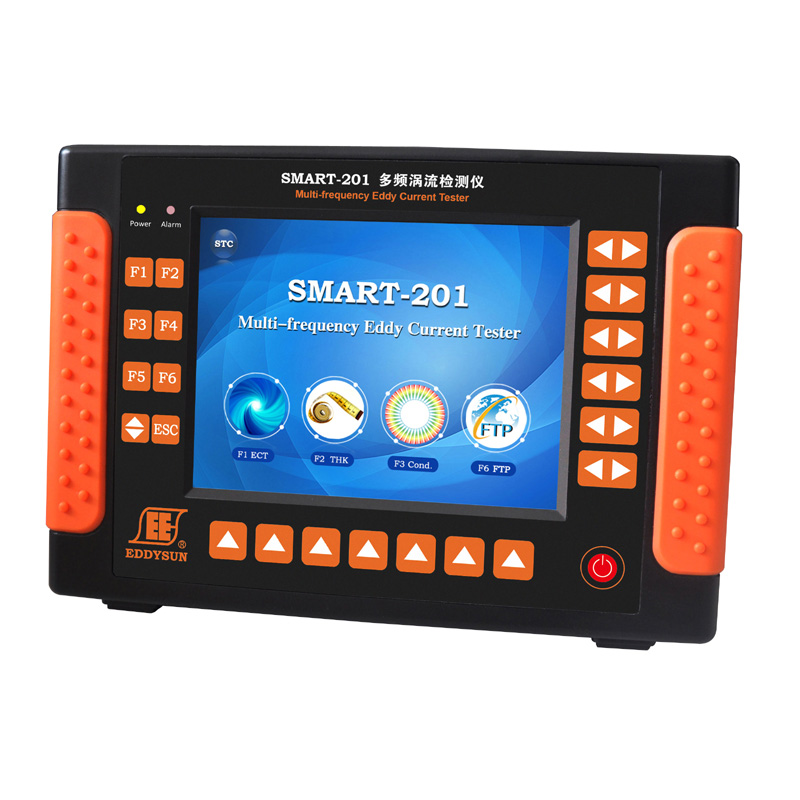

This new powerful eddy current flaw detector makes the manual inspection much easier, faster and more accurate. Defect inspection, weld inspection, conductivity measurement and coating thickness measurement are all included in this instrument. The all-in-one design makes the small body with strong function.
Learn More

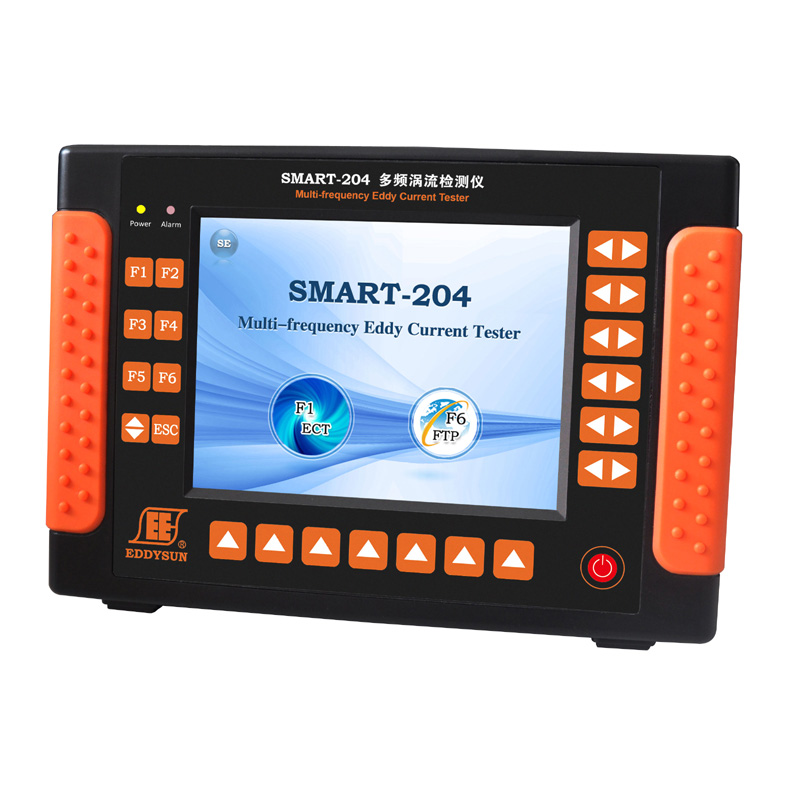

With 4-channel and 2-frequency design, this eddy current crack detection instrument enables high-sensitivity and high-efficiency manual inspection. Inspection settings for different applications can be stored in files and simply called up when needed.
